Model：JX-20
Brand：Jingxin
Specifications ：Set

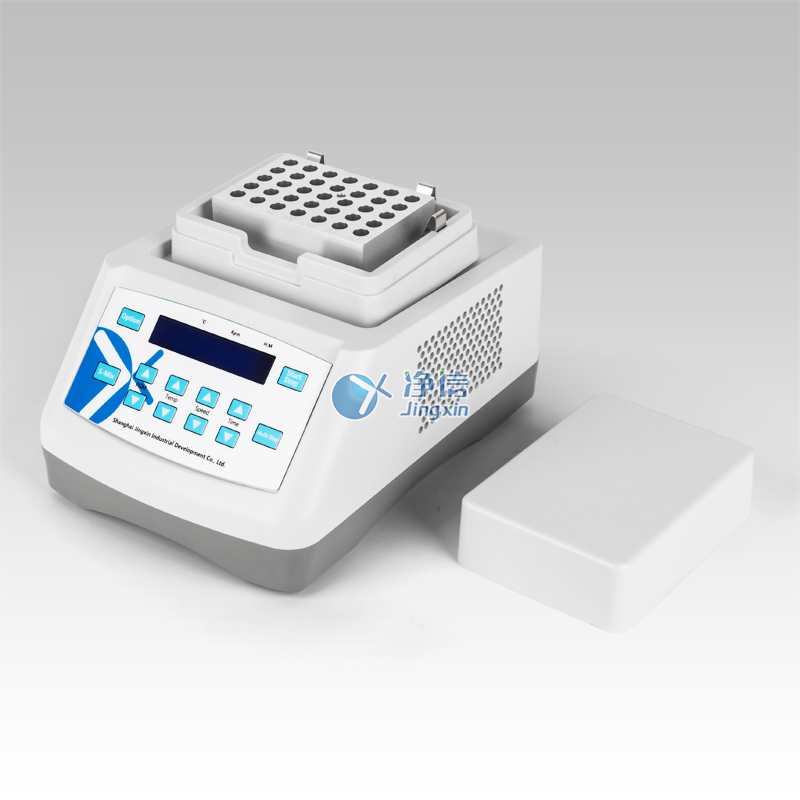

Introduction：JX-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. It uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device.
product description:
JX-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. It uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device. It has exquisite appearance, convenient use, high precision, and small size. , Features such as large temperature control range.
Using high-quality semiconductor refrigeration film and switching power supply module to ensure long-term stable and reliable operation. It can be widely used in sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc.
Features:
◆Real-time temperature display, time countdown display;
◆Automatic fault detection and buzzer alarm function;
◆Temperature deviation calibration function;
◆Built-in over-temperature protection device;
◆Convenient module replacement, easy to clean and disinfect;
◆Exquisite appearance, blue LCD display real-time parameter information;
◆Temperature deviation calibration function, optional power-off automatic recovery function, automatic operation function after power-on, improve work efficiency;
◆Intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the whole range, effectively reducing the experimental error;
◆Multiple safety protection to ensure long-term operation stability and safety under unattended conditions, in line with CE standards;
◆Support module classification custom calibration function;
technical parameter:
Main parameters | Parameter range |
Temperature setting range | 0℃~100℃ |
Temperature control range | 30℃~100℃ below room temperature |
time setting | 1min~99h59min/∞ |
Temperature control accuracy | ≤±0.3℃* |
Display accuracy | 0.1℃ |
Temperature uniformity | ≤±0.3℃* |
Heating time | ≤10 minutes（25℃-100℃）* |
Cooling time 1 | ≤10 minutes（100℃- 25℃）* |
Cooling time 2 | (room temperature drops to 30℃ below room temperature)* |
Store at 4℃ after running | support |
Multi-point operation | Support (5 points) |
Multi-point loop operation | Support (can be cycled 99 times) |
Automatic preheating | support |
Automatically run on startup | support |
Automatic recovery after power failure | support |
Sample capacity | See module selection table |
input power | 150W |
Voltage | AC110~220V/50-60HZ |
Fuse | 250V 3A Ф5×20 |
Dimensions(mm) | 260x195x150 mm |
weight | 4.5Kg |

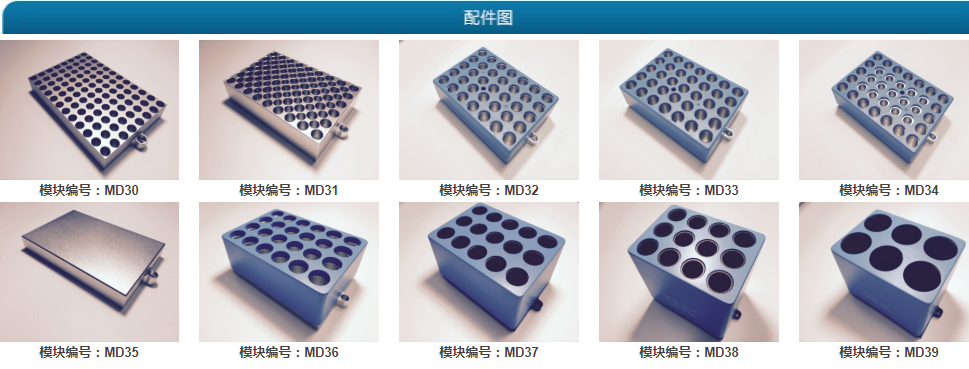

Optional modules:
Model | Test tube diameter | Test tube number |
MD30 | 0.2ml ((standard plate) | 96 |
MD31 | 0.5ml (centrifuge tube) | 54 |
MD32 | 1.5ml (centrifuge tube) | 35 |
MD33 | 2.0ml (centrifuge tube) | 35 |
MD34 | 0.5ml+1.5ml (centrifuge tube) | 15+20 |
MD35 | 0.2ml (enzyme plate) | 96 |
MD36 | 5ml | 24 |
MD37 | 10ml | 15 |
MD38 | 15ml | 12 |
MD39 | 50ml | 6 |
Customized module | Sample tube specifications provided by the customer | —— |
Optional accessories:
